| Modelo | FLY TOO 3040 | |||
| Cabezal | 1*EPSON i3200 HD | |||
| Max.Resolución | 720*1200dpi | |||
| Tamaño de la tabla | 300*460mm | |||
| Velocidad de impresión | Max 5.5sqm/h | |||
| Método de Impresión | Blanco,Color,Barnizar al mismo tiempo | |||
| Max.Colores de tinta admitidos | 8colors | |||
| Modo de Impresión | CMYK+W+V/CMYKLcLm+W/CMYKLcLmLkLlk/CMYK | |||
| Grosor de impresión | Max.95mm | |||
| Tipo de tintas | Tinta curable UV/LED respetuosa con el medio ambiente | |||
| Sistema de curado de tinta | LED UV Sistema de curado | |||
| Software | Desgarro del futuro estándar | |||
| Conectividad | USB3.0/Ethernet | |||
| Potencia | Monofásico , 220V AC±10 % , 50 / 60HZ | |||
| Medio ambiente | Temp . 15-32 ; RH 40·65% | |||
| Medida de la máquina(L*W*H) | 1140*860*640mm | |||
| Dimensión del paquete(L*W*H) | 1170*1040*810mm,200KG |

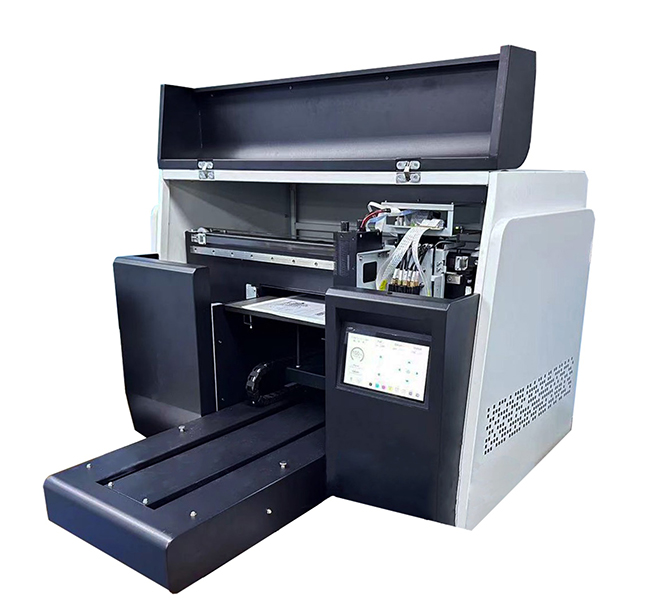

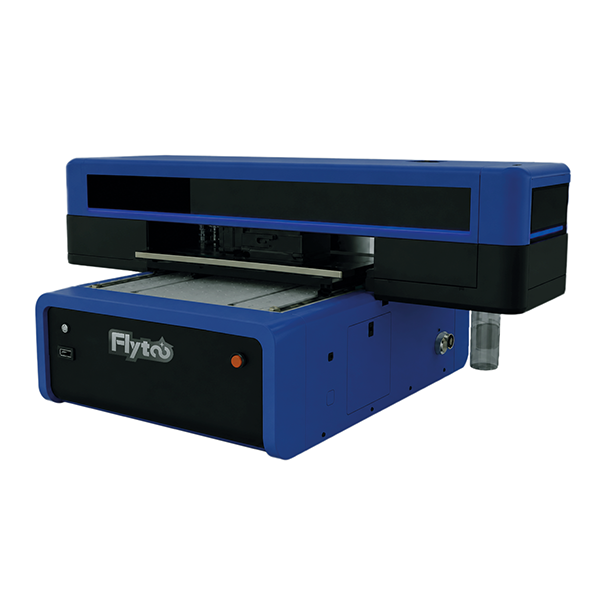

A3 LED UV Flatbed Printer
Skilful and refined, what is shown is what you see.
Features:
√ The resolution can reach 1200 dpi, and it can produce up to 8-color output.
√ Compact, less foot print.
√ Humanized design operation panel, convenient and fast operation.
√ Various functions, support flat and roll printing.
√ Simultaneous output of white, color and varnish.
√ High precision lifting vacuum table - the flatness can be controlled within 0.1mm.
√ Intelligent ink supply system - with ink shortage alarm function. Fixture (optional)

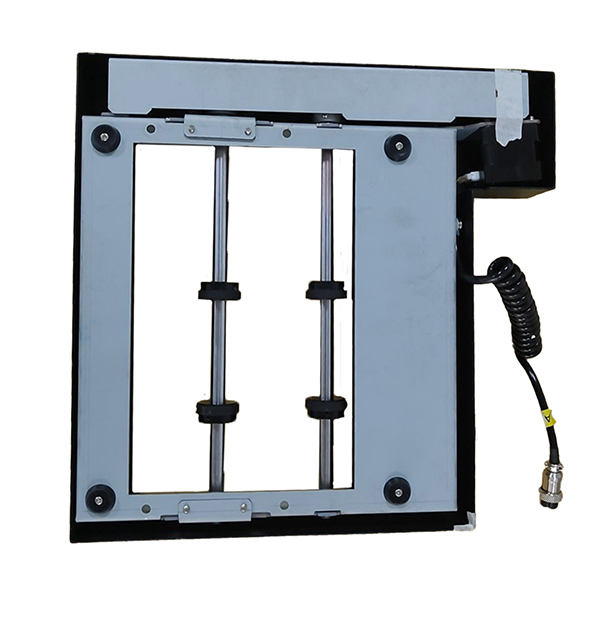

Roll fixture: Suitable for blanks within 11lbs (5kg) weight, 250mm (9.84”) to 300mm (11.81”) diameter.

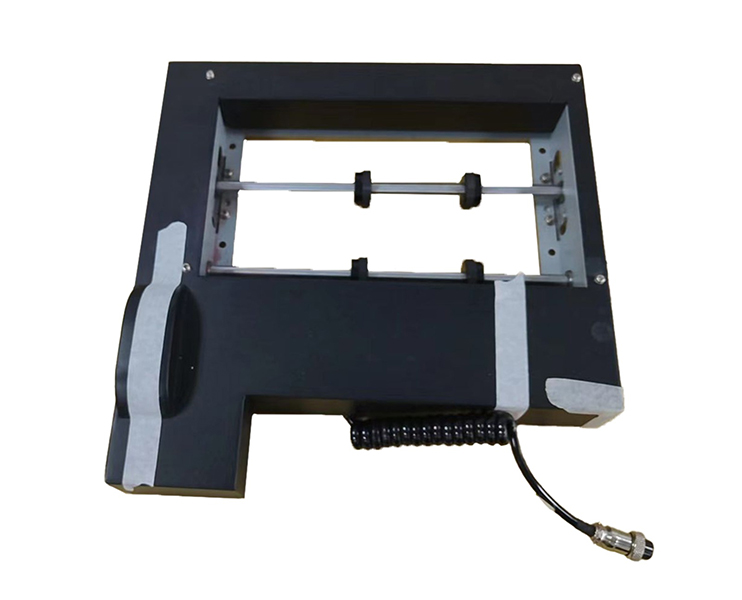

Cylindrical fixture: Suitable for blanks within 25mm (0.98”) - 80mm (3.14”) diameter and 20mm(0.78”) - 210mm (8.27”) length.
Technical Specs:
Print size: 300 x 460mm

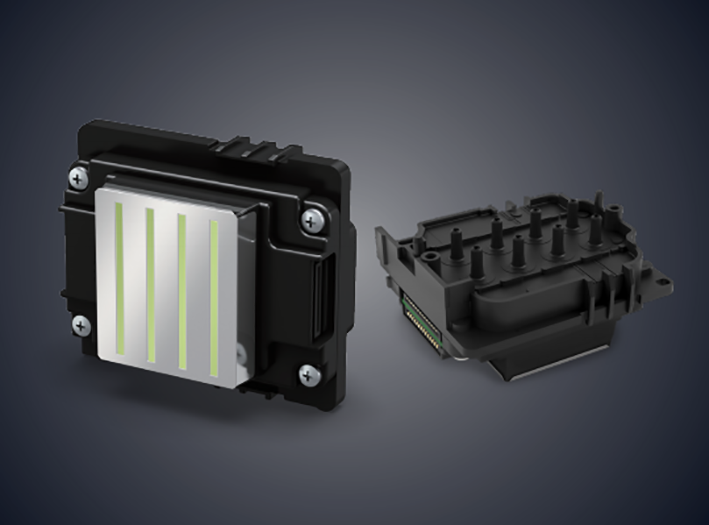

Print head: EPSON I3200 x 1pc
Nozzle spray force range: 2-3mm(0.0787in-0.0118in)
Number of nozzle: 3200 (Individual)
Distance between nozzles: 1/300inch
Numbers of nozzle rows: 8
Maximum number of supported ink colors: 8
Effective print width: 300npi/1 list, 600npi/1 list, 1200npi/1 list
Droplet ejection performance(Droplet volume and ejection frequency):
2 levels of grayscale 5 pl (43.2KHz)
3 levels of grayscale 6, 12.5 pl (21.6KHz)
4 levels of grayscale 3.8, 6.2, 9.3 pl (21.6KHz)
Print height: 0-85mm(0-3.34in)
Ink type: Environmental UV curing ink
Print version: White and color and varnish print as same time
Print mode: CMYK+WWVV/CMYK+lcLmWW/CMYK+LcLmLkLLk/CMYK+CMYK
Rip software: Future Rip
Print speed: 0.28-3sqm/h
Highest print solution: 720 x 1200dpi
Connection method: Network cable
Graphic format: Tiff, Jpg, Eps, Pdf, Png
Printer dimension(L x W x H): 100 x 902 x 592cm (39.37 x 35.51 x 23.31in)
Net Weight: 60kg (132.28lbs)
Packing size(L x W x H):112 x 102 x 78cm (44.09 x 40.16 x 30.71in)
Gross Weight: 80kg (176.37lbs)
Power: AC220/ AC110V, 50-60HZ, 1 phase; 360W, 3.3A (110V) / 2A (220V)
Working environment:Temperature:20℃-28℃(68℉-82.4℉); humidity: 35%-65%
Package Includes:
UV printer x 1
Future Rip x 1
Power cable x 1
Network cable x 1
Details:

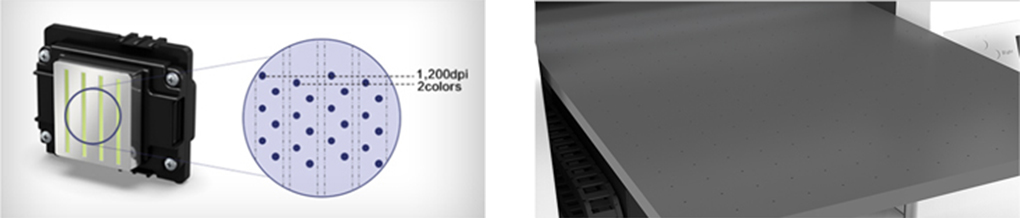

| EPSON I3200 print head - 1200 dpi reaches the highest resolution in the industry, creating excellent photo quality. | Lifting vacuum table - High-precision honeycomb hard aluminum platform, the flatness it controlled within 0.1mm. |
| Intelligent ink supply system - New ink cartridge design, with ink automatic circulation, ink shortage alarm function. | Lifting capping station design - The motor drives the capping station to rise and fall, precisely controls the position of the carriage and better protects the head. |
| Multifunctional control panel - Humanized design, in line with human habits, flexible and easy to operate. | Full coverage shade cover - Light-shielding, dust-proof, touch-proof. |
Applications:
Handicraft industry: Earrings, bookmarks, Rubik's cube, bowling ball, fridge magnets, brooches, buttons, key-chains, pendants, small badges, small metal billboard, bottle openers, etc.
Electronics digital industry: Watches, u disk, earphones, mobile power banks, mobile phone case, tempered film, small speakers, power cords, electronic cigarettes, etc.
Stationery industry: Ballpoint pen, glass case, notebook, Pencil case, ruler, eraser, correction fluid, mouse pad, stapler, pencil, label paper, etc.
Personalized gift customization: Lithographs, art books, mobile phone case, puzzles, car accessories, stationery gift sets, gift lights, etc.
